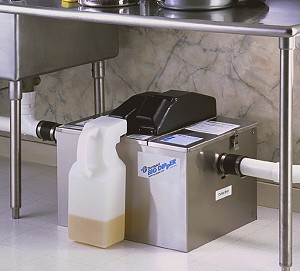

Big Dipper W-200-IS Automatic Grease Trap

Thermaco Big Dipper W-200-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 20 gallons per minute peak flow, 40 pounds of grease capacity and including as an integral part of the unit, 1 rotating gear hydrophobic wheel assembly for automatic grease/oil removal, an integral flow control device, self-regulating enclosed electric immersion heater, a vessel vent, an integral gas trap, an integral programmable 24-hour multi-event time control, a field reversible motor location, a field reversible grease/oil sump outlet, quick release stainless steel lid clamps, a gasketted and fully removable 304 stainless steel lid, a lift-out strainer basket access, an internal stainless steel strainer basket for collection of coarse solids, and a separate grease and oils collection container. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with thermal overload protection with automatically resettable switch. Two (2) no-hub connectors for plumbing connection provided. Product Information:

• Material Exterior: 304 Stainless Steel, Bright Finish
• Material Interior: Rotationally Molded Polyethylene
• Electrical: 115 VAC, 60 Hz, 520 Watts (4.5 Amps)
• Maximum Inlet Flow Rate: 20 GPM
• Number of Skimming Wheels: 1
• Skimming Rate: 20 Pounds Per Hour
• Grease Retention Capacity: 40+ Pounds
• Internal Solids Strainer Capacity: 1.85 Gallons
